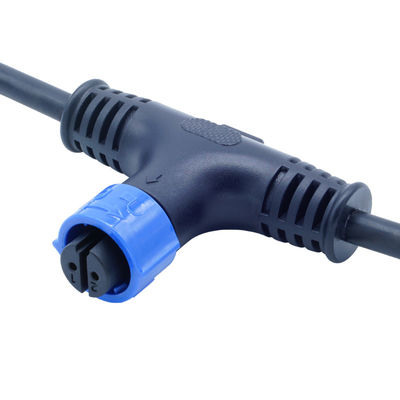

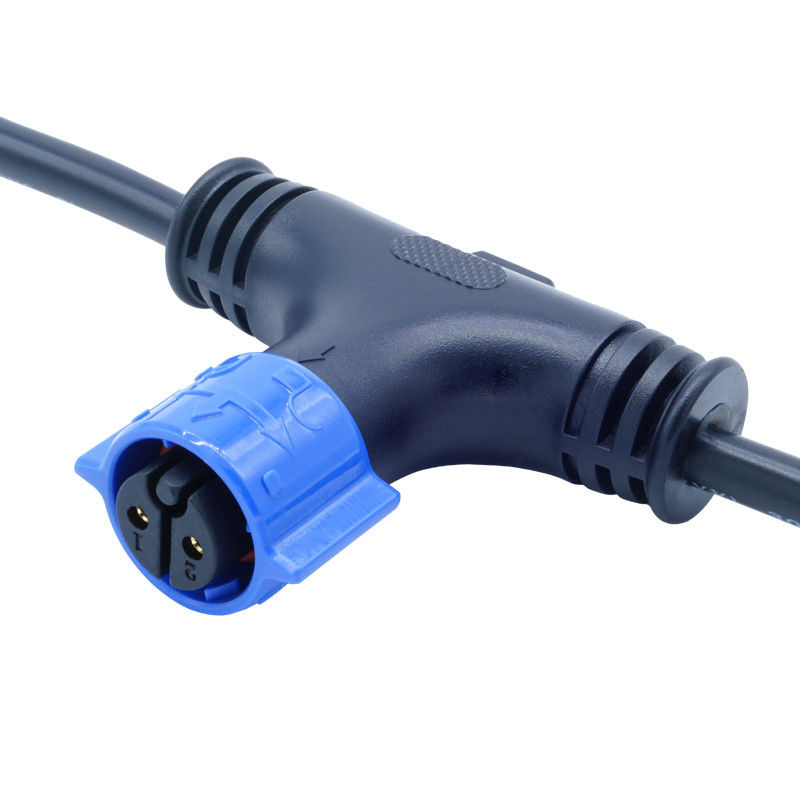

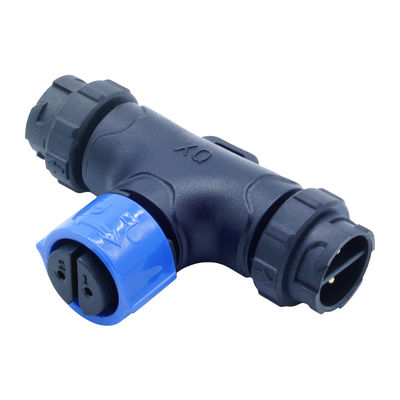

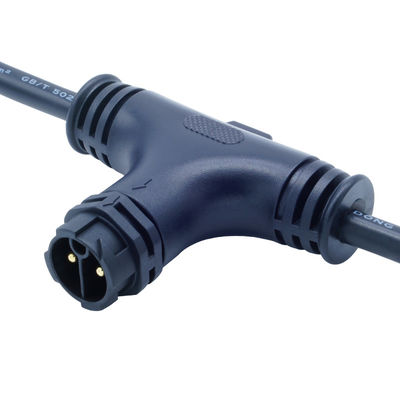

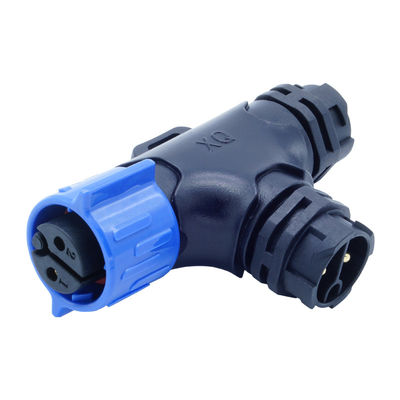

M16 M20 M25 T Shape Outfoor LED Waterproof IP67 Electric Connectors
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Xiangqian |
| Certification: | UL |
| Model Number: | T Type Plug |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 450*320*280 |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000PCS/days |
|
Detail Information |
|||
| Application: | LED Light, Ebike | Connector Size: | 2.5mm |
|---|---|---|---|
| Connector Pin Number: | 2 Pin | Sample: | Free |
| Rated Voltage: | 250V | Cable Length: | Customized |
| Ip Rating: | IP67 | Contact Resistance: | 2.5mΩ |
| Connector Gender: | Male+Female | Insulation Resistance: | ≥1000MΩ |
| Withstand Voltage: | 1500V | Type: | T Type Waterproof Connector |
| Certifications: | CE, RoHS,UL | Temperature Range: | -40℃~105℃ |
| Pin Type: | Male/Female | ||
Product Description
M16 M20 M25 T Shape Outfoor LED Waterproof IP67 Electric Connectors
Product Description:
2-5 Core Pin Waterproof Tee connector.1 Male connector 2 female connectors. Support 2-5 Core Pin straight waterproof connector and waterproof cable wire.
High-quality material, making soldering easy.No loose, reliable, and lightweight. Material: PVC + Copper wire, reliable and safe, no loose, lightweight, and beautiful appearance.
Connect reliably and effectively IP65 waterproof. Wide range of uses, Motorcycles, Car, Truck, Boat, Indoor Outdoor Single Color LED Strip Lights LED String WS2811 WS2812B WS2815 SK6812RGBW SK9822 3 PIN 4 PIN LED addressable strip.
1. T shape waterproof wire connectors
2. Push locking T waterproof connectors
3. Waterproof electrical connectors
4. Male and female led waterproof connector
Technical Parameters:
|
Product name
|
T Shape connector
|
Connecting mode
|
Push locking
|
|
Brand
|
Xiangqian
|
Application
|
LED light,power
|
|
Voltage
|
600V
|
Certification
|
CE, RoHS,UL,TUV
|
|
Current
|
15A
|
Warranty
|
1 years
|
|
Color
|
Blue/Yellow/White
|
Protection level
|
IP67
|
|
Contacts pin
|
2-6pin
|
MOQ
|
100 Piece
|
|
Material
|
PA66
|
Flame-resistant
|
UL94V-0
|
|
Gender
|
Male + Female
|
Cable gague
|
Max.1.0m㎡
|
Features/ advantages of T shape plug
1. Special shape - T type connector
2. 3 way waterproof connector , connect with male / female connector per customer ' s requirement
3. High current and voltage
4. Connect with cable by soldering , can fix the cable well
5. Length of cable - per customer 's requirement
Applications & benifits of waterproof connectors:
1. Great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2. Moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.
3. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
